Description

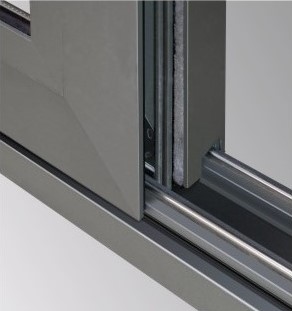

Overview section structure

• European and American standard design, overall structural design is solemn and generous, luxury appearance
• Good air tightness and water tightness performance, using two EPDM material sealing design; compared to traditional sliding doors, it has higher sealing performance;
• Three cavity profile structure, multi-cavity with high sound insulation, high energy saving effect
• Door panel design is flexible and changeable, you can choose from single, double up to four panels, which are available upon request
• Luxury screen door, with matching security flyscreen

Widely used

• Balcony, sunroom, room partitions, conference room, banquet hall

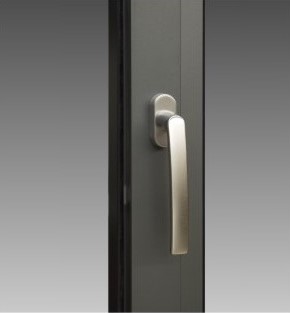

Hardware configuration

• German brand Siegenia, GU

Glass configuration

• 6mm (clear) + 12A + 6mm (clear) Hollow double tempered

Specifications configuration

• Aluminum alloy profile thickness 2mm

Technical parameters

Indicator Name	Detection Value	National Standard No.
Anti-wind pressure performance	Level 7 (highest is 9)	GB/T8478-2008
Air tight performance	Level 5 (highest is 8)	GB/T8478-2008
Water tight performance	Level 5 (highest is 6)	GB/T8478-2008
Sound insulation performance	Level 4 (highest is 6)	GB/T8478-2008

---
