Description

Overview Section Structure

• Built-in blinds are inside an insulated glass unit which is filled of dessicants to ensure no fogging or frosting
• Blinds not only control the light entering the room, but is also used for space privacy
• The beautiful and practical features of old fashioned blinds are retained, while overcoming the disadvantages of cleaning trouble
• Blinds can be easily raised or turned 180 degrees with the magnetic force used to control it
• This type of blinds can not only act as a sunshade but is also a space saver


Glass Configuration

• 4 mm + 19A + 5mm
• Total thickness: 31 mm

Specifications Configuration

• Blade width: 12.5 mm
• Blade thickness: 0.18 mm
• Material: aluminum alloy
• Width range: 350 – 900 mm
• Height range: 500 – 2200 mm
• Dew point test: No fogging or frosting at -72⁰C
• Glass slot depth: 12 mm
• Recommended area: within 2m²
• Control: left or right
• Operation Mode: bilateral double control, unilateral single control. unilateral double control
• Display Effects: full shade, half shade, no shade

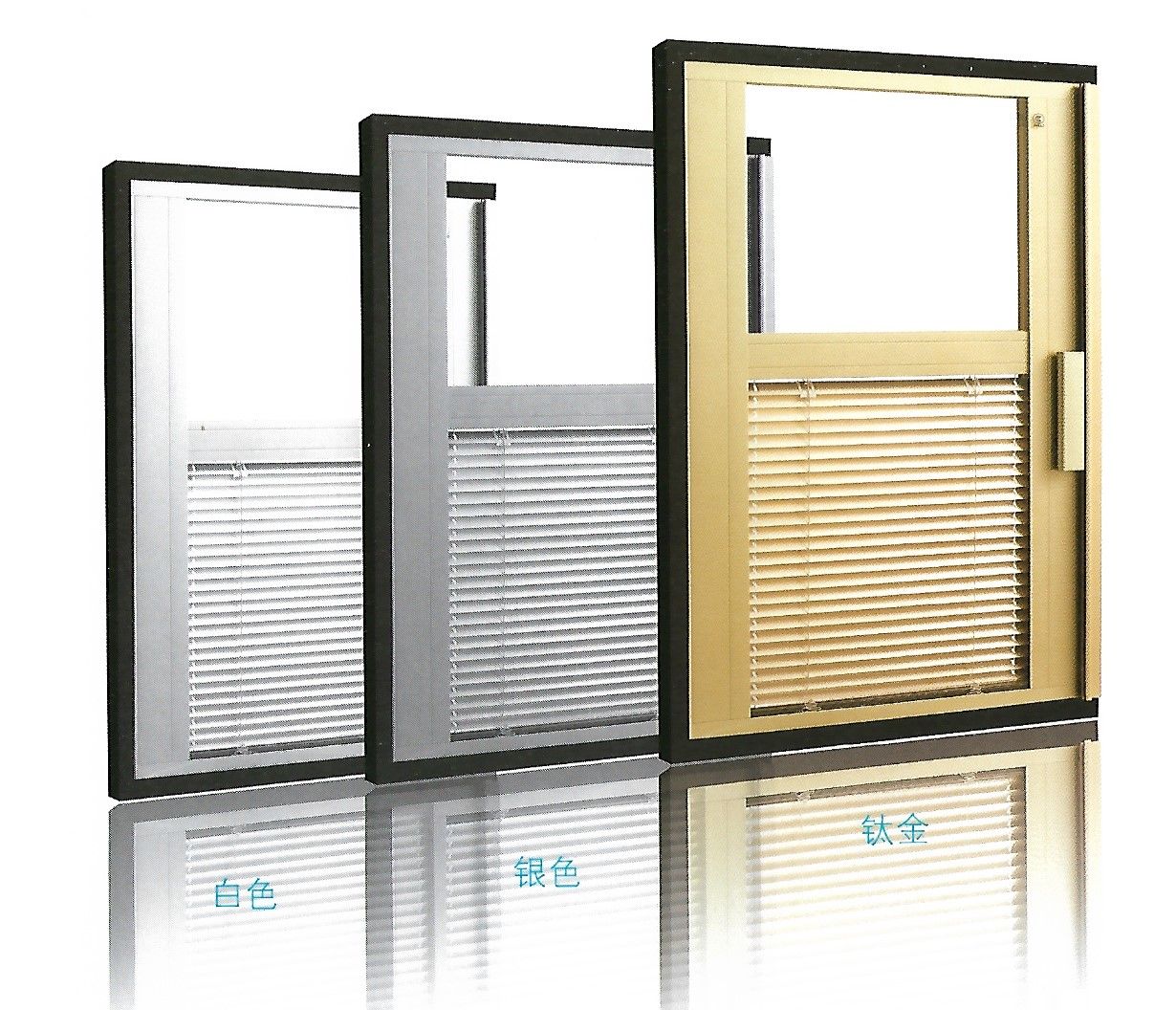

Colors – white, silver, titanium

Mechanism – magnetic side pole control

Advantages

    1. Energy-saving – In the summer time, when the blinds are closed, it can block direct sunlight, block the convection of hot and cold air, and greatly reduce the energy consumption of indoor air conditioning. In winter, it can be lifted to make the sun directly shines and fully absorbs the heat. The 20 mm barrier of the air layer will greatly increase the indoor thermal insulation temperature.
2. Sound insulation – According to the test, the insulating glass can generally reduce the noise transmitted from outside to inside by about 25 decibels, and the built-in louvered doors and windows of the insulating glass can further reduce indoor noise, which can reach 36 decibels, so as to ensure perfect sound insulation effect.
3. Fire resistance – In any building, the traditional curtains are inflammable, and in case of fire, the curtains made of cloth, chemical fiber and other materials will release a large number of toxic smoke when burning, resulting in indoor suffocation and casualties. The built-in blinds in insulated glass is not only free from open fire, but also cannot release smoke in the fire. The double layered glass and the built-in aluminum magnesium louver also have the function of blocking the flame transmission, effectively reducing the probability of fire, which is a reliable fire protection product.
4. Dust, oil smoke, and pollution prevention – The utility model has the advantages of dust prevention, oil smoke prevention and pollution prevention. The shutter does not need to be cleaned to achieve the effect of time-saving and labor-saving. The built-in louvered doors and windows will bring you a quiet and comfortable healthy environment unconsciously when creating a personalized private space.
5. Frost proof – In the colder areas in winter, due to the large indoor and outdoor temperature difference, the general glass door and window system will appear the phenomenon of frost. Because of its good air tightness and water tightness, the built-in louver insulated glass door and window is used to isolate the moisture seepage and effectively avoid the frost phenomenon on the door and window glass system.
6. Safety – It adopts double-sided hollow tempered glass with high resistance to wind and external impact. It is suitable for high-rise and coastal buildings and can also replace traditional curtains.
7. Cleanliness – Clean, no curtains, easy to clean and disinfect, no dust mites. No matter the louver or the glass, there is no pollution in the process of production and use. And because the louver is installed in the sealed hollow glass, the permanent seal ensures that the louver is permanently clean and free from pollution, avoiding complex cleaning work.
8. Economic – Reduce the energy consumption of air conditioning, save a lot of power, UV protection number 000/0.02, protect indoor supplies, and save the purchase cost and cleaning cost of curtains. The built-in louver of hollow glass is the sun shading product of doors and windows, which can not only save the use of space, but also achieve the purpose of sun shading. At the same time, it also has the functions of heat preservation and noise prevention, bringing new visual effects to the home.
